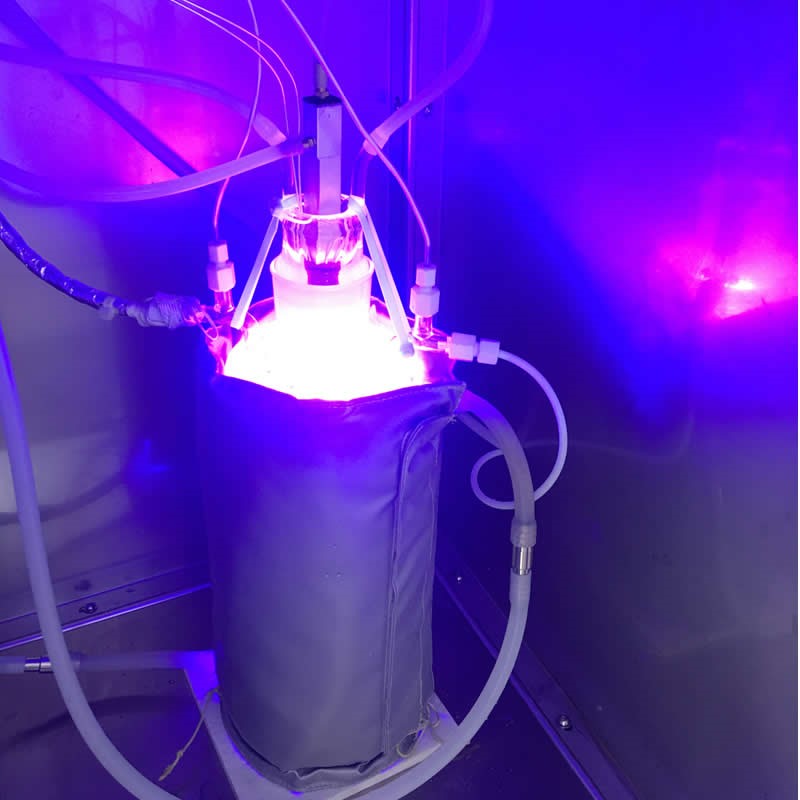

Photochlorination reactor

product manual

In order to meet the small-scale pilot project of chemical enterprises for photochlorination, Shanghai Guige Industrial Co., Ltd. launched a Photocatalytic Reactor that can satisfy the free radical reaction of chlorine gas. Equipment foundation to realize high temperature, low temperature, gas distribution, uniform illumination and diversified light waves;

Features

●Integrated equipment design saves space

●Multi-channel gas mixed intake

●Differential heating and heat preservation of gas circuit

●Multiple choices of light source-mercury lamp (full spectrum ultraviolet 365NM mainly), LED (narrow band ultraviolet, blue light)

●The reactor is made of quartz and various design schemes

Customized solutions

The process description provided by the user-preliminary design-user communication-further adjustment plan-formation of drawings-confirmation by both parties-drafting of business documents;

technical parameter

●Input voltage: 220V 50Hz

●Heating temperature of reactor: room temperature—300℃

●Tracheal material: 316L stainless steel, high borosilicate glass

●Pneumatic heating power: 100W/m

● Vaporizer: Gaopeng silicon glass material

●Reactor front gas mixer: high borosilicate glass

●Reactor: quartz material (customized according to process requirements)

●Light source power: 1KW-5KW optional, higher power in pilot or industrialization

●Light band: ultraviolet light or blue light
