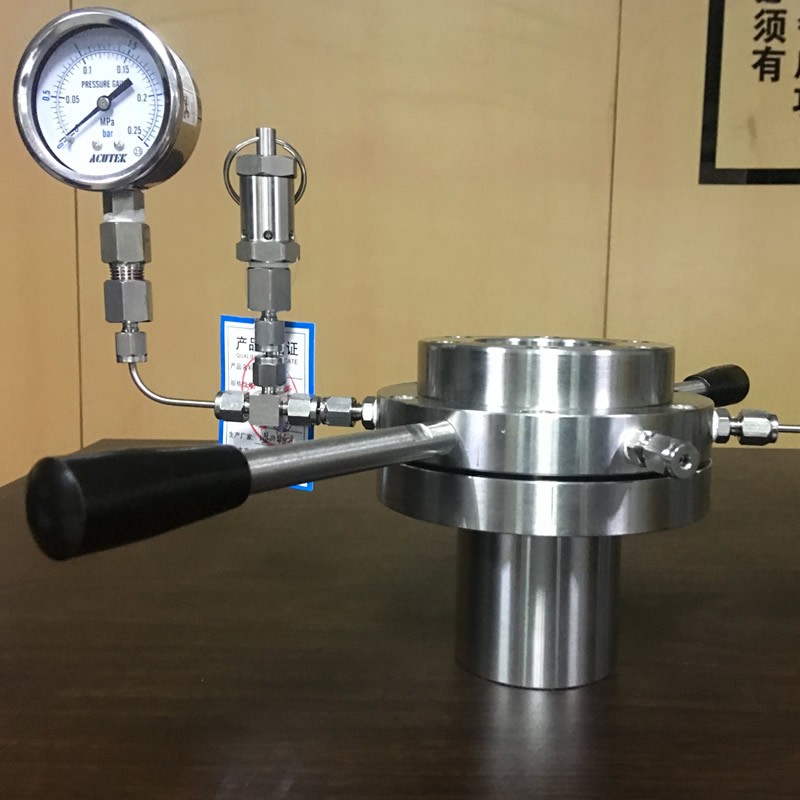

Photocatalytic stainless steel reactor

In order to adapt to the development in the field of photochemistry, Guige Industry has developed a variety of photochemical reaction kettles, which can realize photochemical catalysis, synthesis, degradation and other reactions under high pressure.

product manual

In order to adapt to the development in the field of photochemistry, Guige Industry has developed a variety of photochemical reaction kettles, which can realize photochemical catalysis, synthesis, degradation and other reactions under high pressure, and can realize real-time online temperature control. It is suitable for photochemical high-pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol CH3OH, carbon dioxide CO2 reduction to methane CH4, nitrogen oxide NOx reduction degradation, high-pressure photocatalytic degradation of formaldehyde and other fields. Suitable for the reaction of a small number of samples, it is the most ideal reaction device for testing expensive or low-volume raw material samples. Safer design, can work 24 hours a day.


Features

◆The design adopts thread seal structure, which is easy to disassemble;

◆ 2-8 standard high-voltage interfaces can be reserved for real-time online detection of air inlet and air outlet (standard two standard interfaces are reserved);

◆It can realize the regular and quantitative addition of the required reaction gas;

◆Online continuous gas sampling can be achieved during the reaction;

◆Online liquid sample can be taken during the reaction;

◆The corresponding high-voltage system can be customized according to the experimental requirements;

◆The through hole uses super hard synthetic quartz, which guarantees the safety of the product and realizes the transmission of all light from 180-1100nm;

◆The outside of the Reactor can be heated or cooled according to the experimental requirements to make its temperature constant;


Optional accessories

◆Can provide multiple interfaces

◆Thermometer sleeve

◆Explosion-proof membrane

◆Pressure gauge or pressure sensor

◆Bleed valve

◆Can be connected to gas sampling tube kit

◆Can be connected to liquid sampling tube kit


technical parameter

Model: GUIGO-01

Volume: 200ml

Packable solution: <100ml

Working pressure: 1.0MPa

Reactor material: stainless steel

Stirring: heating magnetic stirring

Link form: thread

Clear aperture: 40mm
